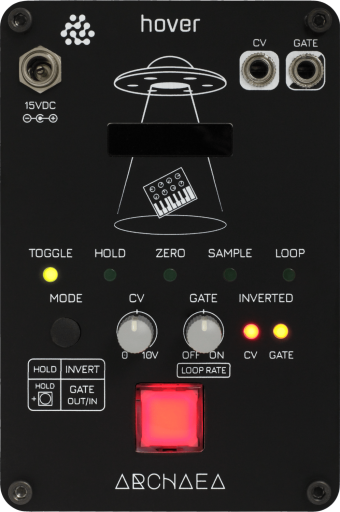

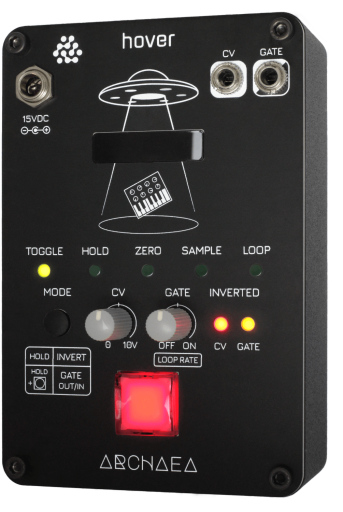

Hover Modular Synthesizer Beam Controller

The output modes include allowing Hover to be used like a standard fader or knob. In this mode, the CV output can be modulated with hand movements, and when done, the output can be frozen by pressing the button. The button lights up to indicate when the hand is positioned to continue from where the output was last frozen, avoiding any jumps in the output. The other modes allow the button to freeze the output when released, zero the output when released, and sample and hold the output when pressed.



The looper function includes a playback rate, allowing you to record hand movements, loop them, and play them back at different speeds. The CV output can be scaled between 0V and 10V. The 5V gate output can be triggered when the hand passes a configurable threshold. Both the CV and gate outputs can be inverted independently. The gate can also be set as an input to trigger the button function or restart the loop from an external trigger source, such as a sequencer. The restart and rate control features allow modulation loops created with Hover to be perfectly in sync with the music.
